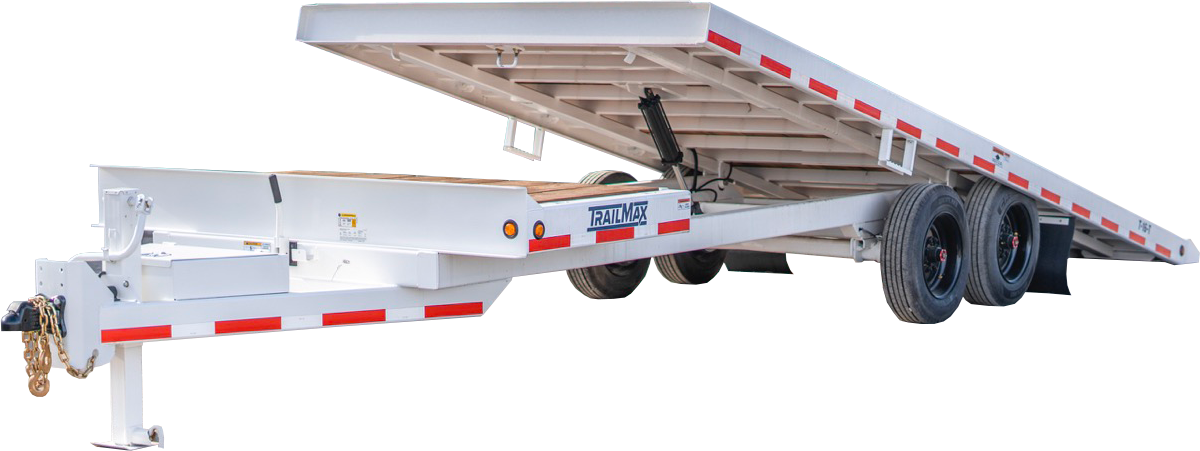

Wider deck, lower load angle
Designed to provide additional deck width beyond our Utility Series, the T-16-T leads the market with the lowest load angle and shortest overall length. Maximize your hauling versatility without compromising safety and handling.
At a Glance
- Lowest load angle in its class
- 18,400 lbs GVWR
- 3" x 12" cushion cylinder
- 2 x 8,000 lb axles, rubber torsion
- 26' 1" to 29' 8" overall
- 10 D-rings (1"), 8 stake pockets
Video walkthrough
Specs and options
| Specification | T-16-T | T-16-T (4+20) |
|---|---|---|
| GVWR | 18,400 lbs | 18,400 lbs |
| Capacity (Distributed) | 13,740 lbs | 13,740 lbs |
| Base Trailer Weight | 3,620 lbs | 3,620 lbs |
| Length | 26' 1" | 29' 8" |
| Frame Construction | Tubular subframe with high tensile perimeter rails | Tubular subframe with high tensile perimeter rails |
| Crossmembers | 3" tubular crossmembers on 16" centers | 3" tubular crossmembers on 16" centers |
| Hitch | 2-5/16" ball coupler, adjustable | 2-5/16" ball coupler, adjustable |
| Landing Gear | 10,000 lb. capacity with drop foot | 12,000 lb. capacity with drop foot |
| Safety Chains | 3/8" Grade 70 cadmium plated with slip hooks and safety latches | 3/8" Grade 70 cadmium plated with slip hooks and safety latches |
| Deck Latch | Over-center type with tension adjustment and safety pin | Over-center type with tension adjustment and safety pin |
| Cushion Cylinder | 3" x 12" with internal metered flow to cushion loading and unloading | 3" x 12" with internal metered flow to cushion loading and unloading |
| Load Securement | 10 each (5 per side) 1" D-ring type, 8 each (4 per side) stake pocket | 10 each (5 per side) 1" D-ring type, 8 each (4 per side) stake pocket |
| Storage Compartment | In tongue with lockable lid | In tongue with lockable lid |
| Axles | 2 each 8,000 lb. capacity | 2 each 8,000 lb. capacity |
| Hubs | 8 on 6.5 bolt circle with 5/8" swivel flange lug nuts | 8 on 6.5 bolt circle with 5/8" swivel flange lug nuts |
| Brakes | 12-1/4" x 3-3/8" electric brakes with 12 volt sealed breakaway system | 12-1/4" x 3-3/8" electric brakes with 12 volt sealed breakaway system |
| Suspension | Rubber torsion | Rubber torsion |
| Wheels | 17.5" x 6.75" 8 hole disc type, 6.5 bolt circle | 17.5" x 6.75" 8 hole disc type, 6.5 bolt circle |
| Tires | 215/75R 17.5 radial load range H | 215/75R 17.5 radial load range H |
| Finish Preparation | Pre-treatment wash and media blast | Pre-treatment wash and media blast |
| Base Coating | Corrosion-resistant copolymer | Corrosion-resistant copolymer |
| Finish Coating | Two-component urethane enamel top coat | Two-component urethane enamel top coat |
| Electrical | Sealed wire harness | Sealed wire harness |
| Decking | 2" rough sawn Fir | 2" rough sawn Fir |
From the TrailMax 2026 catalog. Specifications can change; confirm with your dealer.
T-16-T
Full tilt deck
- Length
- 26' 1"
- GVWR
- 18,400 lbs
- Distributed cap.
- 13,740 lbs
- Base weight
- 3,620 lbs
T-16-T (4+20)
4 ft stationary + 20 ft tilt
- Length
- 29' 8"
- GVWR
- 18,400 lbs
- Distributed cap.
- 13,740 lbs
- Base weight
- 3,620 lbs
Frame, axles, brakes, and finish are the same across every T-16-T deck layout unless the specifications table shows otherwise.
- Spare tire carrier
- Spare tire
- Winch mount and roller
- Winch (12k electric)
- Aluminum wheels
- D-rings, standard placement
- Additional D-rings (each)
- Apitong decking
- Traction bar assembly (bolt on)
- Additional tool tray (no lid)
- Shovel and broom holder
- Undermount winches (standard placement)
- Electric or hydraulic jack
Options offered across the Medium Tilt line. Ask your dealer which apply to the T-16-T.
Ready to price the T-16-T? Tell TrailMax sales the deck layout and options you want, and we'll put a quote together.
How the T-16-T compares
| Model | T-16-UT | T-16-T | T-20-UT |
|---|---|---|---|
| Series | Utility Tilt | Medium Tilt | Utility Tilt |
| GVWR | 18,400 lbs | 18,400 lbs | 23,000 lbs |
| Distributed capacity | 14,000 lbs to 14,780 lbs | 13,740 lbs | 18,200 lbs to 18,900 lbs |
| Overall length | 21' 5" to 27' 7" | 26' 1" to 29' 8" | 21' 5" to 27' 7" |
| Axles | 2 x 8,000 lb | 2 x 8,000 lb | 2 x 10,000 lb |
| Brakes | Electric | Electric | Electric |
| Hitch | 2-5/16" ball coupler | 2-5/16" ball coupler | 2-5/16" ball coupler |
Every model page has the full specification table. Find a dealer near you.
Not sure which size fits? Pick your machine, or enter its weight and length, and the match tool shows which TrailMax trailers can haul it.
T-16-T questions
What is the T-16-T GVWR and load capacity?
The T-16-T is rated at 18,400 lbs GVWR. Distributed capacity is 13,740 lbs on every deck layout. TrailMax recommends averaging 75 to 80% of rated capacity.
What deck layouts does the T-16-T come in?
T-16-T: full tilt deck, 26' 1" overall. T-16-T (4+20): 4 ft stationary + 20 ft tilt, 29' 8" overall.
What does it take to tow the T-16-T?
It tows on a 2-5/16" ball coupler, adjustable for height. It has 12-1/4" x 3-3/8" electric brakes with a 12 volt sealed breakaway, run from a brake controller in the tow vehicle.
Where can I buy a T-16-T?
Through an authorized TrailMax dealer. Use the dealer finder, call the factory at 208-733-0585, or request a quote from TrailMax sales.
